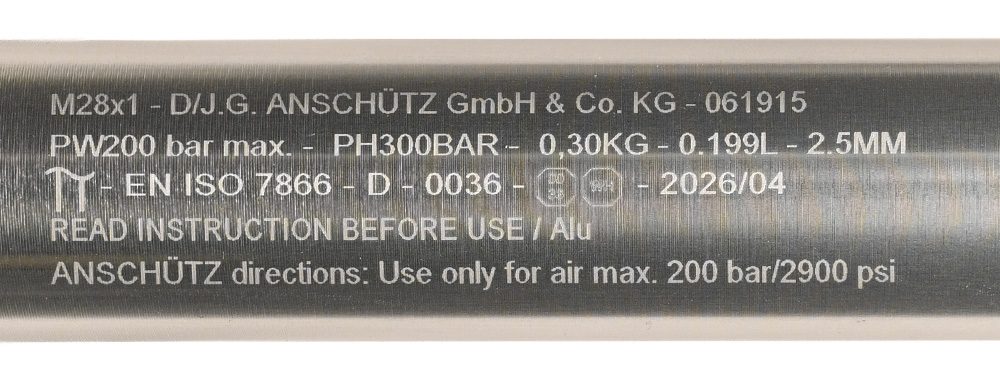

Aluminum cartridge (valid as of May 5, 2026)
M28x1 – D/J.G. ANSCHÜTZ GmbH & Co. KG – 061915
PW200 bar max. – PH300BAR – 0.30 kg – 0.199 L – 2.5 mm
Pi – EN ISO 7866 – D – 0036 – (0036) (WH) – 2026/04
READ INSTRUCTIONS BEFORE USE / Alu
ANSCHÜTZ directions: Use only for air max. 200 bar/2900 psi
Explanation:
- M28x1 = type of cartridge thread
- D = country code for Germany
- J.G. ANSCHÜTZ GmbH & Co. KG = Seller'scompany name
- 061915= Serial number
- PW200 bar max. = Max. Operating pressure / filling pressure at 15°C
- PH300BAR = test pressure
- 0.30KG = Weight of the cartridge tube without valves
- 0.199 L = Volumeof empty cartridge
- 2.5 mm= minimum wallthickness of the cartridge
- Pi = conformity mark according to Directive 1999/36/EC
- EN ISO 7866 = DIN standard for refillable seamless gas cylinders made of aluminum alloys
- D = Country codefor Germany
- 0036 = TÜV certificationmark
- (0036) (WH) = TÜVmarkand inspector's mark
- April 2026 = Dateof the cartridge pressure test
- READ INSTRUCTIONS BEFORE USE = GeneralUser Notice
- Alu = Aluminum cartridge
- ANSCHÜTZ directions: Use only for air max. 200 bar/2900 psi =
ANSCHÜTZ Note: May only be operated at max. 200 bar/2900 psi
Aluminum cartridge can be used for max. 10 years (after which the cartridge must be disposed of)!
-----------------------------------------------------------

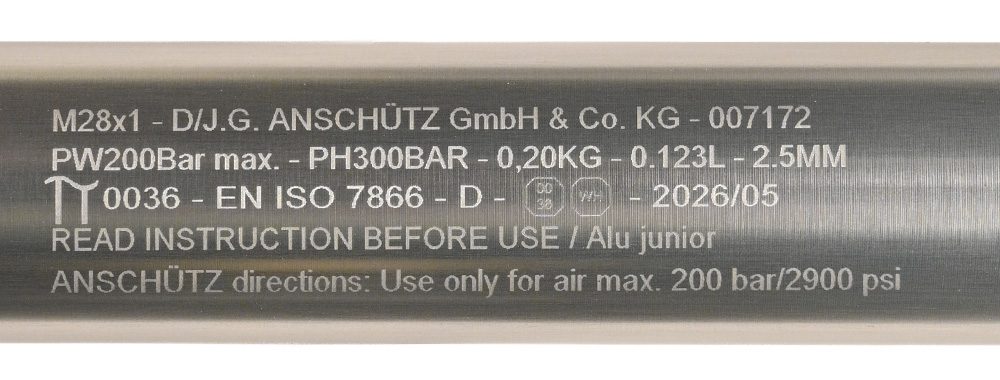

Junior Aluminum Cartridge (valid from May 5, 2026)
M28x1 – D/J.G. ANSCHÜTZ GmbH & Co. KG – 007172
PW200BAR max. – PH300BAR – 0.20 kg – 0.123 L – 2.5 mm
Pi 0036 – EN ISO 7866 – D – (0036) (WH) – 2026/05
READ INSTRUCTIONS BEFORE USE / Alu junior
ANSCHÜTZ directions: Use only for air max. 200 bar/2900 psi
Explanation:
- M28x1 = type of cartridge thread
- D = country code for Germany
- J.G. ANSCHÜTZ Gmbh & Co. KG = company name of the seller
- 007127 = Serial number
- PW200BAR max. = Maximum operating pressure / filling pressure at 15°C
- PH300BAR = test pressure
- 0.20 kg = Weight of the cartridge tube without valves
- 0.123 L = volume of empty cartridge
- 2.5 mm = minimum wall thickness of the cartridge
- Pi = conformity mark according to Directive 1999/36/EC
- EN ISO 7866 = DIN standard for refillable seamless gas cylinders made of aluminum alloys
- D = country code for Germany
- (0036) (WH) = Symbol of the TÜV body and symbol of the inspector
- 2025/07 = Time of the pressure test of the cartridge
- READ INSTRUCTIONS BEFORE USE = General user information
- Alu junior = Junior aluminum cartridge
- ANSCHÜTZ directions: Use only for air max. 200 bar/2900 psi =
ANSCHÜTZ Note: May only be operated at max. 200 bar/2900 psi
Aluminum cartridge can be used for max. 10 years (after which the cartridge must be disposed of)!
-----------------------------------------------------------
